Check Valve

Reliable Non-Return Valves for Backflow Prevention

Check valves are automatic one-way valves that allow fluid to flow in only one direction while preventing reverse flow. They operate passively using differential pressure, opening with forward flow and closing tightly when flow stops or reverses. Anante's check valves ensure system protection, reduce water hammer, and maintain process integrity across diverse applications. Available in swing, dual-plate, lift, and piston designs, they offer low pressure drop, silent operation, and minimal maintenance. Suitable for oil & gas, water treatment, chemical, and power systems, these valves provide dependable performance with metal or soft seating, fire-safe options, and compliance with API, ASME, and ISO standards.

Swing Check Valve

Reliable Backflow Prevention with Swing Check Valves

Swing check valves, also known as backflow preventers, allow fluid to flow in only one direction while automatically preventing reverse flow. The valve features a hinged disc that swings open with forward flow and closes against the seat to block backflow. Ideal for various industries, swing check valves offer low-pressure drop, affordability, and ease of installation, making them suitable for water, wastewater, and general fluid control applications.

Specification

  • Manufacturing Type: Forged (1/2" to 2") or Cast (2" to 12")
  • Pressure Class: #2500
  • MOC: A105, F11, F22, LF2, F304, F304L, F316, F316L, F51, F53, F55, F347, F321, INCONEL 625, MONEL 400, HASTELLOY C-276, ALLOY 20 (Forged); WCB, WCC, LCA, LCB, LCC, WC1, WC6, WC9, C5, C12, CF8, CF3, CF8M, CF3M, CN7M, CF8C, CW6MC, CW2M, CY40, Cu5MCuC, 1A, 4A, 5A, 6A (Cast)
  • End Connections: Flange, Butweld, Socket Weld, Screwed, Wafer/Lug
  • Design Standard: API 602 / ISO 15761 / ASME B16.34 (Forged); BS 1868 / ASME B16.34 (Cast)
  • Testing Standard: API 598 / BSEN 12266-1
  • Certifications: PED, UKCA, TSG, TSSA, TR, ATEX, SIL, TA-Luft, IBR
  • Seat Type: Soft (NBR, EPDM, Viton, PTFE, POM) or Metal
  • Overlay Options: Alloy-6, Alloy-21, SS316, SS410, Monel, Inconel
  • Coatings: FBE, ENP, Nylon

Feature

  • Large fluid area with removable bonnet for easy cleaning
  • Streamlined flow path for low-pressure drop
  • Hinged disc design for reliable sealing
  • Fire-tested to API 607 / ISO 10497 / API 6FA
  • Anti-static and blow-out proof stem (where applicable)
  • Actuator mounting flange per ISO 5211
  • Fugitive emissions compliant per ISO-15848 & TA-Luft
  • Vertical or horizontal installation capability

Benefit

  • Affordable and budget-friendly option
  • Prevents backflow and protects equipment
  • Low maintenance with easy installation
  • Reduces water hammer in low-risk systems
  • Versatile for various fluids including water and wastewater
  • High durability in industrial environments

Applications

  • Oil & Gas
  • Petrochemical
  • Water and Wastewater
  • Chemical Processing
  • Power Generation
  • Food & Pharmaceutical

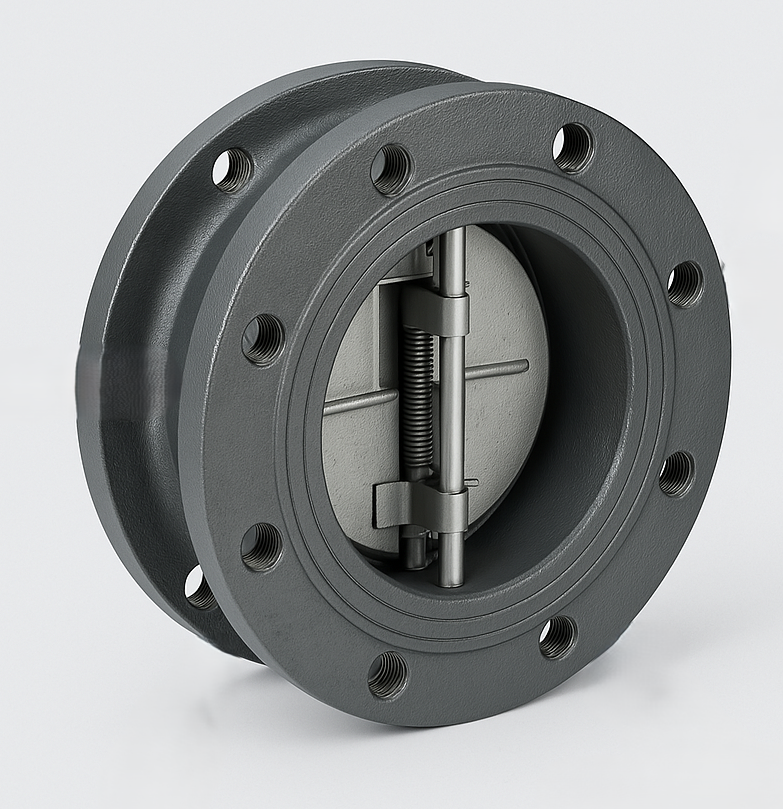

Dual Plate Check Valve

Compact and Efficient Dual Plate Check Valves for Backflow Prevention

Dual plate check valves, also known as double-door or twin-disc check valves, feature two semicircular plates hinged on a central pin, allowing fluid to flow in one direction while preventing reverse flow. Spring-assisted for quick closure, these valves are compact, lightweight, and ideal for applications requiring non-slam operation. They offer low-pressure drop, reduced water hammer, and are suitable for liquid, gas, and steam systems in various industries.

Specification

  • Manufacturing Type: Cast
  • Size Range: 2" to 12"
  • Pressure Class: #2500
  • MOC: WCB, WCC, LCA, LCB, LCC, WC1, WC6, WC9, C5, C12, CF8, CF3, CF8M, CF3M, CN7M, CF8C, CW6MC, CW2M, CY40, Cu5MCuC, 1A, 4A, 5A, 6A
  • End Connections: Flange, Wafer/Lug, Hub
  • Design Standard: API 594 / ASME B16.34
  • Testing Standard: API 598 / BSEN 12266-1
  • Certifications: PED, UKCA, TSG, TSSA, TR, ATEX, SIL, TA-Luft, API 6D
  • Seat Type: Soft (NBR, EPDM, Viton, PTFE) or Metal
  • Overlay Options: Alloy-6, Alloy-21, SS316, SS410, Monel, Inconel
  • Coatings: FBE, ENP, Nylon

Feature

  • Retainerless design for critical applications
  • Spring-loaded plates for non-slam closure
  • Compact and lightweight construction
  • Low-pressure drop and alleviated water hammer
  • Exceeds API specifications
  • Streamlined flow path
  • Easier installation and replacement
  • Suitable for heating, air conditioning, and cooling systems

Benefit

  • Stronger and lighter than conventional swing check valves
  • Lower cost and simple maintenance
  • Prevents backflow in pipelines
  • Ideal for systems with potential reverse flow
  • Versatile for liquid, gas, and steam
  • High performance in critical services

Applications

  • Oil & Gas
  • Petrochemical
  • Water Systems
  • Chemical Processing
  • Power Generation
  • Food & Pharmaceutical
  • Heating and Cooling Systems

Nozzle Check Valve

High-Performance Nozzle Check Valves for Demanding Applications

Nozzle check valves, also known as axial flow check valves, feature a streamlined design with a spring-loaded disc that moves horizontally to allow unidirectional flow and prevent backflow. Optimized for fast-reversing systems, these valves minimize pressure drop and provide non-slam closure. They are ideal for high-pressure environments in industries like oil and gas, where protection against reverse flow is critical.

Specification

  • Manufacturing Type: Cast
  • Size Range: 2" to 12"
  • Pressure Class: #2500
  • MOC: WCB, WCC, LCA, LCB, LCC, WC1, WC6, WC9, C5, C12, CF8, CF3, CF8M, CF3M, CN7M, CF8C, CW6MC, CW2M, CY40, Cu5MCuC, 1A, 4A, 5A, 6A
  • End Connections: Flange, Wafer/Lug, Hub
  • Design Standard: API 594 / ASME B16.34
  • Testing Standard: API 598 / BSEN 12266-1
  • Certifications: PED, UKCA, TSG, TSSA, TR, ATEX, SIL, TA-Luft, API 6D
  • Seat Type: Soft (NBR, EPDM, Viton, PTFE, PEEK) or Metal
  • Overlay Options: Alloy-6, Alloy-21, SS316, SS410, Monel, Inconel
  • Coatings: FBE, ENP, Nylon

Feature

  • Axial design for streamlined flow and minimal pressure drop
  • Spring-loaded disc for non-slam operation
  • High pressure recovery
  • Optimized for fast-reversing systems
  • Superior to other non-slam check valves
  • Threaded or flanged body options
  • Efficient in handling gases, oils, and harsh materials

Benefit

  • Prevents unintended reverse flow and protects lines
  • Handles high pressure in rigorous applications
  • Reduces effects of water hammer
  • Durable and reliable for demanding conditions
  • Low maintenance with efficient design
  • Ideal for critical services like petrochemical processes

Applications

  • Oil & Gas
  • Petrochemical
  • Water Systems
  • Chemical Processing
  • Power Generation
  • Food & Pharmaceutical
  • Industrial and Power Plants
