Ball Valve

Precision Engineered Ball Valves for Reliable Flow Control

Ball valves are quarter-turn valves utilizing a hollow, perforated, and pivoting ball to control flow. When the valve is open, the ball's hole aligns with the flow path, allowing unobstructed passage. A 90-degree turn closes the valve completely, providing bubble-tight shut-off. Designed for high-performance applications, Anante's ball valves deliver exceptional durability, low torque operation, and minimal maintenance across oil & gas, petrochemical, power, and process industries. With full-port or reduced-port options, fire-safe designs, and anti-static features, they ensure safe and efficient operation even under extreme pressure and temperature conditions.

Floating Ball Valve

Reliable and Efficient Floating Ball Valves for Industrial Applications

floating ball valve is a versatile solution known for its reliable performance and efficient flow control. With a floating ball design, it allows the ball to move freely, ensuring tight sealing and reduced torque requirements. Ideal for various industries such as oil and gas, chemical and water treatment, the floating ball valve offers excellent shut-off capabilities, low-pressure drop and ease of maintenance. Its wide range of material options, sizes and pressure ratings make it suitable for diverse applications, providing reliable and cost-effective valve solutions.

Specification

  • Full bore design.
  • Meets the Leakage criteria as per API 598,BS
  • EN 12266,FCI 70-2
  • Fire tested API 607 & ISO 10497η2010 /API 6FA
  • Anti-static design (electrical continuity between ball stem-body)
  • Blow-out proof stem
  • Actuator mounting flange according to ISO 5211
  • Fugitive emissions per ISO-15848, & TA-Luft

Feature

  • Fire-safe to ISO 10497 and API 607
  • High Sphericity Mirror-finished solid stainless ball
  • Actuator-mounting range conforms to ISO 5211
  • Extended Stem
  • low Torque Design
  • Ease for maintenance
  • Higher End Traceability
  • Available with Operators like Hand lever

Benefit

  • Metal Seated and Soft Seated
  • Available in Casting and forged
  • Various Sizes
  • Various Pressure Class from #150 to #2500
  • Single, Two and Three Piece Floating Valve
  • Sizes from 1/2” to 8”| DN 15 to DN 200

Applications

  • Metal Seated and Soft Seated
  • Available in Casting and forged
  • Various Sizes
  • Various Pressure Class from #150 to #2500
  • Single, Two and Three Piece Floating Valve
  • Sizes from 1/2” to 8”| DN 15 to DN 200

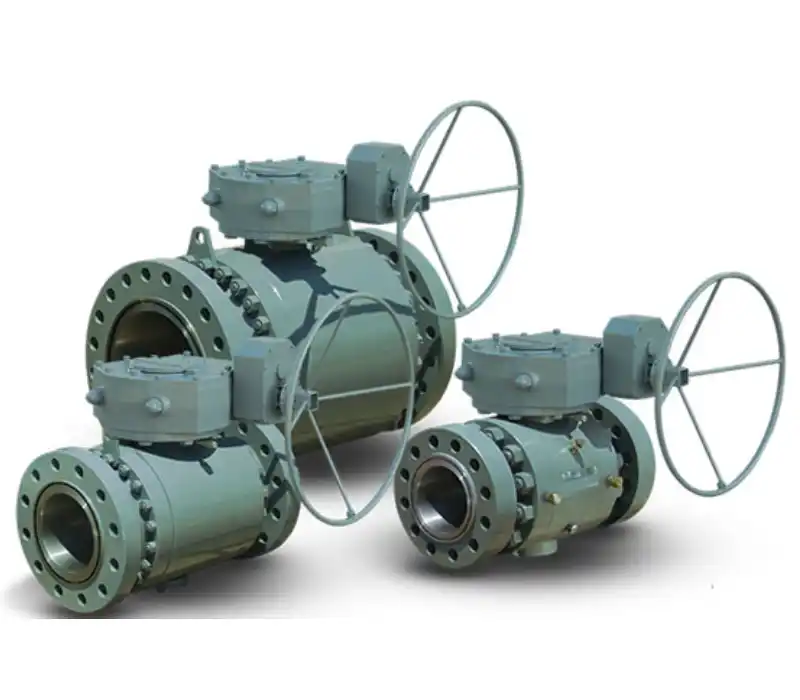

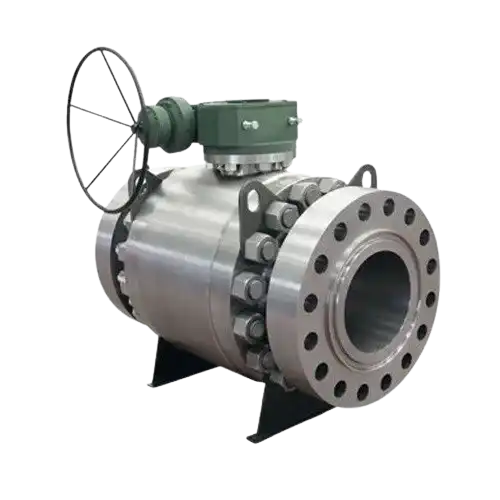

Trunion Mounted Ball Valve

The trunnions help rotate and position the workpiece accurately for milling, drilling, or other machining operations.

Trunnion mounted ball valves are essential components in fluid control systems, offering precise regulation and secure sealing in various industries. Understanding the intricacies of trunnion ball valves is crucial for engineers and operators to make informed decisions when selecting valves for specific applications.Trunnion-mounted Ball Valves (TMBV) meet the requirements of API 6D and can be offered with API 6D monogram. The valves are certified Fire Safe as per API 6FA, API 607 and ISO 10497, and meet Fugitive Emission requirements of ISO 15848 and API 641. L&T TMBV is certified SIL-3 capable (Safety Integrity Level-3) as per IEC 61508 and can be offered with actuators and accessories to meet customer demands.

Specification

  • Full bore design.
  • Meets the Leakage criteria as per API 598,BS
  • EN 12266,FCI 70-2
  • Fire tested API 607 & ISO 10497η2010 /API 6FA
  • Anti-static design (electrical continuity between ball stem-body)
  • Blow-out proof stem
  • Actuator mounting flange according to ISO 5211
  • Fugitive emissions per ISO-15848, & TA-Luft

Feature

  • Fire-safe to ISO 10497 and API 607
  • High Sphericity Mirror-finished solid stainless ball
  • Actuator-mounting range conforms to ISO 5211
  • Extended Stem
  • low Torque Design
  • Ease for maintenance
  • Higher End Traceability
  • Available with Operators like Hand lever

Benefit

  • Metal Seated and Soft Seated
  • Available in Casting and forged
  • Various Sizes from 1/2” to 8”| DN 15 to DN 200
  • Various Pressure Class from #150 to #2500
  • Two and Three Piece Floating Valve

Applications

  • Metal Seated and Soft Seated
  • Available in Casting and forged
  • Various Sizes
  • Various Pressure Class from #150 to #2500
  • Single, Two and Three Piece Floating Valve
  • Sizes from 1/2” to 8”| DN 15 to DN 200
